Pressure Calibrator

Orient Technical Marine Co., Ltd supplies all models of pressure pump and digital gauges for oil tanker from SIKA – Germany, TEK KNOW – EU, NAGMAN – India….

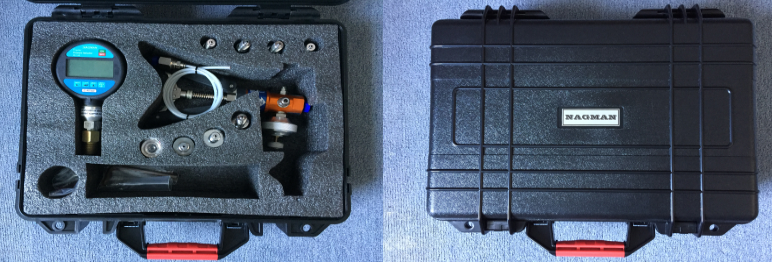

NAGMAN PNEUMATIC HAND TEST PUMP AND DIGITAL PRESSURE GAUGE

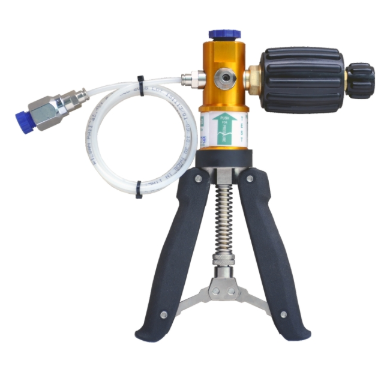

PNEUMATIC HAND PUMP

MODEL PHP10/25/35/40

- Compact, light weight, Hand operated

- Combined vacuum & Pressure pump with Pressure/ Vacuum Changeover Option

- Generation (range) of:

+ Vacuum: upto -0.9 bar

+ Pressure: upto 10/ 25/ 35/ 40 bar

- Fine adjustment Vernier to realize upto 1mBar Resolution/ Sensitivity

- Weight: 0.75 kg

- Test connection port: ¼” (F) BSP

- Gauge/ Indicator connection port: 3/8” (F) BSP

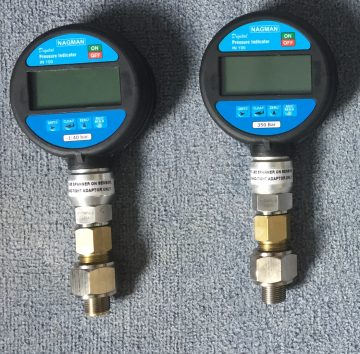

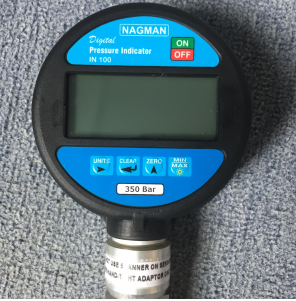

DIGITAL PRESSURE INDICATOR

MODEL

MPCE-IN-100

- Resolution: minimum 5 digits

- Ranges: -0.85 to 40 bar

- Accuracy: +/- 0.1%FS

- Engineering Units: KG/cm²; bar; psi; kPa; inHg; inWc; mmHg; mmWc; mbar; Pa; MPa

- Display: 7 Segment 5 Full Digit High contrast customized LCD Display

NAGMAN HYDRAULIC HAND TEST PUMP AND DIGITAL PRESSURE GAUGE

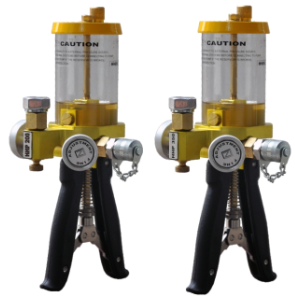

MODEL HHP200/350

HYDRAULIC HAND PUMP

- Compact, Light Weight, Hand Operated

- Medium: Oil (optional: water)

- Ranges: upto 200/ 350 bar

- Fine Adjustment Vernier with Open/ Close Release valve for small incremental pressure readings

- Oil Reservoir material: Transparent Acrylic

- Reservoir Capacity: 100 cc

- Weight: 1.15 kg

PRESSURE CALIBRATOR

MODEL: MPCE-H

- Resolution: minimum 4 ½ digits

- Ranges: 0 đến 350 bar

- Accuracy: +/- 0.1%FS

- Engineering Units: KG/cm²; bar; psi; kPa; inHg; inWc; mmHg; mmWc; mbar; Pa; MPa

MODEL HHP700/1000

HYDRAULIC HAND PUMP

- Compact and Hand Operated

- Medium: Oil/ Water (optional)

- Test Conection Port: ¼” (F) BSP

- Fine adjustment Vernier with Open/ Close Release valve for small incremental pressure readings

PRESSURE CALIBRATOR

MODEL: MPCE-H

- Ranges: 0 đến 700/ 1000 bar

- Accuracy: +/- 0.1%FS

- Medium: Oil/ Water (optional)

- Oil Reservoir Capacity: Transparent Acrylic

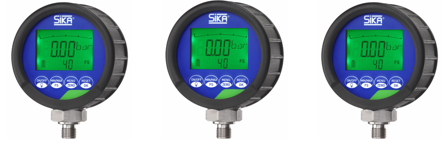

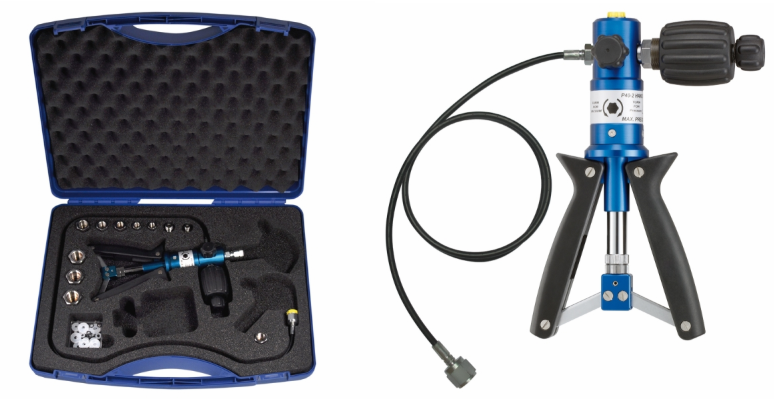

SIKA PNEUMATIC HAND TEST PUMP AND DIGITAL PRESSURE GAUGE
MODEL P40.2	* P40.2 Basic - Type: pneumatic hand test pump - Pressure ranges: -0.95 – 40 bar - Pressure medium: air - Reference pressure gauge: G ¼ - Test sample: H ¼ with quick coupling and pressure hose (1m)
MODEL P60	* P60 Solid - Type: pneumatic hand test pump - Pressure ranges: -0.95 – 60 bar - Pressure medium: air - Reference pressure gauge: G ¼ - Test sample: H ¼ with quick coupling and pressure hose (1m)
