Orient Technical Marine Co., Ltd supplies all models of gas detectors, HONEYWELL-RAE SYSTEMS brands, and spare parts, sensor, calibration kit including span gas, sampling bag, pressure/ flow regulating valve, connecting hose, sample adapter plate…





QRAE3

(Diffusion)

QRAE3

(Built-in pump)





QRAE3 – is a wireless compact monitor for one to four gases

- Basic gases:

1. LEL: 0-100% LEL

2. O2: 0-30% Vol

- Toxic: choose 2 in all:

1. H2S: 0-100 ppm

2. CO: 0-500 ppm

3. SO2: 0-20 ppm

4. HCN: 0-50 ppm

5. NH3: 100 ppm

6. PH3: 20 ppm

7. Cl2: 0-50 ppm

8. NO2: 0-50 ppm

WxHxD = 145 x 82 x 42 mm

Weight: 410g

Source: rechargeable battery

Special used for: Oil/ chemical/ LPG product carrier









MultiRAE

(6 gas monitor)



MultiRAE – Wireless portable six-gas monitor

* Select sensors for the gases to be measured:

1. LEL (CH4): 0-100% LEL

2. VOL (CH4): 0-100% VOL

3. O2: 0-30% Vol

4. H2S: 0-100 ppm

5. CO: 0-500 ppm/ 0-2000 ppm

6. CO2: 0-50.000 ppm

7. SO2: 0-20 ppm

8. HCN: 0-50 ppm

9. NH3: 0-100 ppm

10. PH3: 0-20 ppm

11. Cl2: 0-50 ppm

12. ClO2: 0-1 ppm

13. NO2: 0-20 ppm

14. NO: 0-250 ppm

15. VOC 10.6 EV (EXT.RANGE):  0-5000 ppm

16. ETO-A (Ethylene Oxide): 0-100 ppm

17. ETO-B (Ethylene Oxide): 0-10 ppm

18. CH3-SH (Methyl Mercaptan): 0-10 ppm

WxHxD = 193 x 96.5 x 66 mm

Weight: 880g

Source: rechargeable battery

Special used for: Oil/ chemical/ LPG product carrier









ppbRAE 3000+

(Portable Handheld VOC Monitor)



ppbRAE 3000+

– Portable Handheld VOC Monitor

* VOCs ranges:

+ 0 - 9999 ppb, resolution 1 ppb

+ 100 - 900 ppm, resolution 0.1 ppm

+ 1000 - 9999 ppm, resolution 1 ppm

- Type of sensor: photoionization sensor with standard 10.6eV or optional 9.8 eV lamp

- Display Graphic: 4 lines, 28x43mm, with LED backlight for enhanced display readability

- Sampling pump: internal, integrated flow rate at 500 cc/mn. Sample from 100’ (30m) horizontally and vertically

- Datalogging: Standard 6 months at one-minute intervals

- Wireless Network: Mesh RAE Systems Dedicated Wireless Network

- Certifications: US, Canada and Europe

Battery: rechargeable, external field-replaceable Lithium-Ion battery pack

WxHxD = 255 x 76 x 64 mm

Weight: 738g

Special used for: oil, gas, hazardous areas, industrial safety, healthcare, environment,…





ULTRA RAE 3000+

(Máy đo khí hợp chất hữu cơ bay hơi & BENZENE)







ULTRA RAE 3000+

– Máy đo khí hợp chất hữu cơ dễ bay hơi và benzene

* Thang đo VOCs:

+ 0 - 99.99 ppm, độ phân giải 0.010 ppm

+ 100 - 999.9 ppm, độ phân giải 0.1 ppm

+ 1000 - 9999 ppm, độ phân giải 1 ppm

* Thang đo khí Benzene:

+ 0 - 200 ppm, độ phân giải 0.010 ppm

- Loại sensor: sensor quang hóa với bóng đèn chuẩn 10.6 / 9.8 eV. Sensor và đèn có khả năng tự làm sạch

- Màn hình hiển thị: giá trị VOCs tính bằng ppm hoặc mg/m3

- Phương pháp lấy mẫu: bơm hút bên trong, lưu lượng 500 cc/phút, khả năng hút mẫu lên đến 30m theo phương ngang và đứng

- Nguồn: pin sạc Lithium-ion, thời gian sử dụng lên đến 16 tiếng

- Ghi dữ liệu: chu kỳ ghi mỗi phút, lưu tiêu chuẩn 6 tháng

- Cổng giao tiếp: giao tiếp không dây Wireless

- Chứng nhận: Mỹ và Canada (UL, cUL, Class I, Div.1, Group A, B, C, D). Europe: ATEX, IECEx

- WxHxD = 255 x 76 x 64 mm

- Khối lượng: 738g

- Chuyên dùng: trong lĩnh vực dầu khí, khu vực nguy hiểm, lĩnh vực an toàn công nghiệp, y tế, môi trường và quản lý không khí trong phòng







MiniRAE Lite+

(Portable Handheld VOC Monitor)



MiniRAE Lite+

– Portable Handheld VOC Monitor

* VOCs ranges:

+ 0 - 999.9 ppm, resolution 0.1 ppm

+ 1000 - 5000 ppm, resolution 1 ppm

- Type of sensor: photoionization sensor with standard 10.6eV lamp

- Display graphic: 4 lines, 28x43 mm, with LED back light

- Sampling pump: internal, integrated flow rate at 400 cc/min. Sample from 100’ (30m) horizontally and vertically

- Datalogging: standard 6 months at one-minute intervals

- Wireless network: Bluetooth Low Energy (option)

- Certification: ATEX II 2GEEx ia IIC T4

Battery: Alkaline battery adapter

WxHxD = 255 x 76 x 64 mm

Weight: 738g

Special used for: oil, gas, hazardous areas, industrial safety, healthcare, environment,…









MiniRAE 3000+

(Portable Handheld VOC monitor)



MiniRAE 3000+

- Portable Handheld VOC monitor

* VOCs ranges :

+ 0 - 999.9 ppm, resolution 0.1 ppm

+ 1000 - 15000 ppm, resolution 1 ppm

- Type of sensor: photoionization sensor with standard 10.6eV or optional 9.8eV or 11.7eV lamp

- Display Graphic: 4 lines, 28x43mm, with LED backlight for enhanced display readability

- Sampling pump: internal, integrated flow rate at 500cc/mn. Sample from 100’ (30m) horizontally or vertically

- Datalogging: Standard 6 months at one-minute intervals

- Wireless Network: Mesh RAE Systems Dedicated Wireless Network

- Certificate: USA, Canada, Europe

Battery: : Alkaline battery adapter/ rechargeable battery

WxHxD = 255 x 76 x 64 mm

Weight: 738g

Special used for: oil, gas, hazardous areas, industrial safety, healthcare, environment,…









ToxiRAE II

(Personal Single-Gas Monitor)



ToxiRAE II – Personal Single-Gas Monitor

* Toxic: choose 1 in all

1. Ammonia (NH3): 0-50 ppm

2. Carbon monoxide (CO): 0-500 ppm or 0 - 1999 ppm

3. Chlorine (Cl2): 0-10 ppm

4. Chlorine dioxide (ClO2): 0-1 ppm

5. Hydrogen cyanide (HCN): 0-100 ppm

6. Hydrogen Sulfide (H2S): 0-100 ppm

7. Nitric Oxide (NO): 0-250 ppm

8. Nitrogen dioxide (NO2): 0-20 ppm

9. Oxygen (O2): 0-30%

10. Phosphine (PH3): 0-5 ppm

11. Sulfur dioxide (SO2): 0-20 ppm

Battery: User-replaceable 2/3 AA high-capacity Lithium battery (use only RAE System batteries)

WxHxD = 93 x 49 x 22 mm

Weight: 120g

Special used for: Oil/ chemical/ LPG product carrier









HONEYWELL IMPACT PRO





HONEYWELL IMPACT PRO

* Selectable 1 to 4 sensors for gas detector

1. 0-100% LEL hoặc 0-100% VOL

2. Oxygen: 0-25%

3. Carbon monoxide: 0-500 ppm

4. Hydrogen Sulfide: 0-50 ppm

5. Carbon dioxide: 0.2-2%

6. Sulfur dioxide: 0-20 ppm

7. Chlorine: 0-10 ppm

8. Nitrogen dioxide: 0-20 ppm

9. Ammonia: 0-100 ppm

Sampling pump: internal, integrated flow rate at 0.3 L/P

Battery: Ni-MH rechargeable battery Ni-MH and operation time > 10 hours

WxHxD = 136 x 84 x 49 mm

Weight: 520g

Certification: ATEX, MED

Special used for: Oil/ chemical/ LPG product carrier





► SENSOR FOR HONEYWELL-RAE SYSTEMS





LEL

O2

CO

H2S

QRAEII

014-0212-000

022-0300-000

032-0200-000

032-0202-000

QRAE3

014-0212-000

022-0902-000

032-0200-003

032-0202-003













► HONEYWELL GAS SAMPLING HAND PUMP

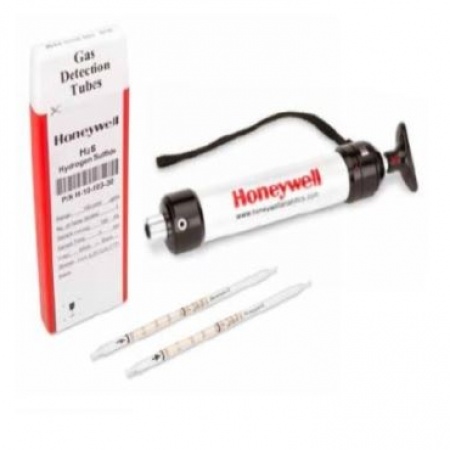

The LP-1200 is a piston type-hand pump that draws a fixed volume of gas, selectable at either 50mL or 100mL by rotating the handle. A tight vacuum seal is formed by a greased plunger gasket. The tapered rubber inlet accommodates a range of tube diameters for different types of tubes. The inlet filter prevents glass pieces and dust from entering the shaft. An end-of-flow indicator in the handle turns whites when the gas sampling is complete. A pump stroke counter is rotated to keep track of the number of strokes completed.















COLORIMETRIC GAS DETECTION TUBES

MODEL: LP -1200 / H-010-0901-000

Gas detection tubes operate in the following manner. An air sample is drawn through a tube containing a reagent. The advantages of detection tubes over other analytical methods are simplicity of use, rapid response, low cost, and very low maintenance. Because each batch of Honeywell tubes is pre-calibrated, no-calibration equipment is necessary. Errors are prevented by directly marking the calibration information on each tube, and accuracy is further ensured by controlling the volume of air sampled. Honeywell tubes areprimarily of the narrow bore type and are designed for use with a Honeywell Handoperated piston pump
